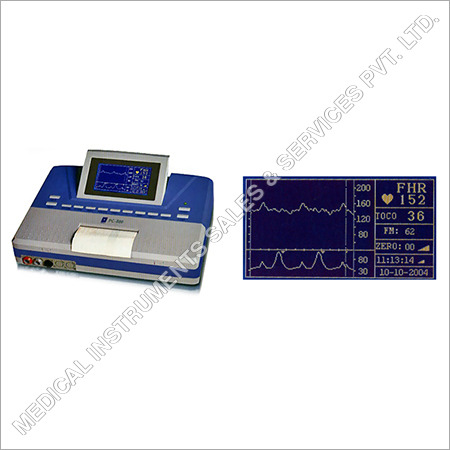

Fetal Monitor

Fetal Monitor
Fetal Monitor
Product Code : PC-800
Brand Name : MISS
Product Description

We are coveted manufacturer, supplier, exporter and service provider of Fetal Monitor to our valued customers. The offered instrument is utilized in hospitals in order to monitor the activities of fetal in womb of the pregnant lady. Offered Fetal monitor is designed and engineered by export professionals with utmost perfection with finest components and advanced technology to ensure its impeccable performance and durability. This device is highly valued by clients for its excellent accuracy and affordable price range.

Specifications and Qualifications


Working Theory

Pulse Dopper System

Ultrasonic working frequency

1 MHz

Ultrasonic output intensity ISATA


Sampling rate

1 KHz

FHR Measuring Range


FHR accuracy

1bpm (25-210bpm)

FHR volume

1~14 grades adjustable, default:7

FHR alarm

High and low limits setting, automatic memory


TOCO transducer

External pressure transducer

TOCO measuring range


TOCO pressure display


TOCO alarming range

High limit:1~100%, default 100%
Low Limit: 0~100% default 0%

Zero setting mode



FM Working Mode

Automatic and manual FM marking function

A solid triangle mark emerges at the top of FHR waveform

Only one time will be counted within five minutes even if the key is pressed for many times.

Other Specifications

Main structure

Integrative and portable


6" LCD display


FHR and TOCO waveforms display
FM marking function

Operating Environment

Ambient temperature


Relative Humidity

upto 85%

Atmospheric pressure


Power Supply

Power supply

220VAC, 50Hz and 100-250VAC 50/60Hz selectable

Power consumption

Less than 50VA

Review time

3 hours

Safety standard

EN IEC60601-1 (GB9706.1)

Quality System

ORKI 13485:2003
CE EN ISO 13485:2003


Printer type

Built-in 110mm thermal printer

Print mode

Real-time or event triggered recording of waveforms and text


Standard Configuration

Ultrasonic transducer, TOCO transducer, FM marker, built-in 110mm thermal printer
